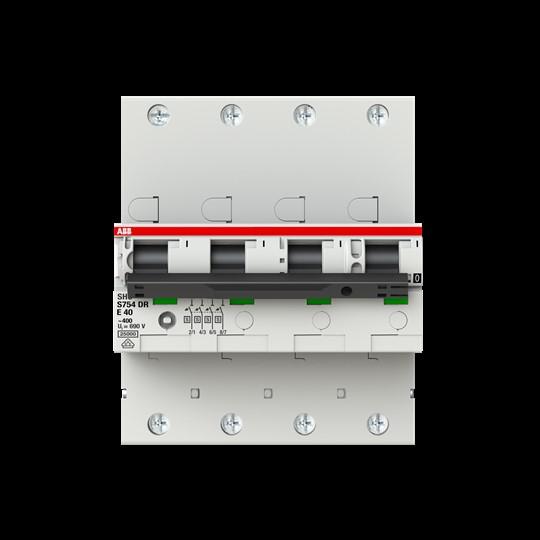

ABB S754DR-E40 sel. main LS (SHU) E-Char.,25kA,40A,4P S754DR-E40

ABB Stotz S&J Main Circuit Breaker S754DR-E40

Manufacturer: ABB Stotz S&J
Designation: Main Circuit Breaker 40A E 25kA 4P
Type: S754DR-E40
Tripping Characteristic: other
Number of Poles: 4
Rated Current: 40 A
Rated Voltage: 400 V
Rated Insulation Voltage Ui: 690 V
Rated Short-Circuit Breaking Capacity: 25 kA
Switched Neutral Conductor: no
Frequency: 50 Hz
Overvoltage Category: 4
Degree of Pollution: 3
Rated Impulse Voltage Withstand: 6 kV
Mounting Type: DIN Rail
Protection Class (IP): IP20
Size (according to DIN 43880): 3

The selective main circuit breakers of the S750DR series are certified according to DIN VDE 0641-21 as voltage-independent selective main circuit breakers (SHU) and are designed for layman operation and the highest overvoltage category. Their application area is diverse: as a disconnecting device at the metering point according to the TAB of the network operators or VDE-AR-N 4101, as well as in all low-voltage main distributions for the protection of distribution circuits and as a disconnection device with a separating function. Notable are the special selectivity features that ensure high system availability. They are designed for mounting on a 35 mm top-hat rail according to DIN EN 60715. Devices of the S750DR family include an integrated locking mechanism that allows simultaneous blocking of the 3 poles of a three-phase supply. The integrated locking slider locks in the ON or OFF position and can additionally be secured with a padlock, wire seal, or cable tie. The switching state can be monitored via an attachable auxiliary switch.
