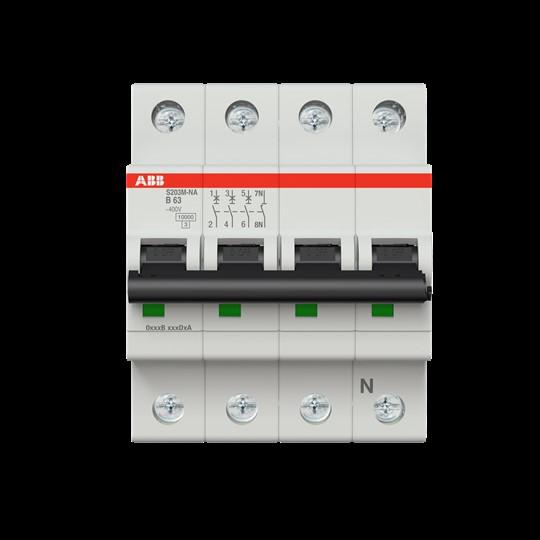

ABB S203M-B63NA Automatic circuit breaker B-Char., 2CDS273103R0635

Ratings
Delivered between Wed, 13.8. and Thu, 4.9.

Product details

The S 200 M series circuit breakers protect cables and lines from overload and short circuits in accordance with DIN VDE 0100-430 and DIN VDE 0100-530. They comply with the construction regulations DIN VDE 0641-11 or IEC/EN 60898-1, DIN VDE 0660-101 or IEC/EN 60947-2, as well as UL 1077 and CSA 22.2 No. 235. Their patented terminal block ensures easy and secure connection and handling via a pressure plate. For better visibility during wiring, the connection opening for wires is positioned above the connection opening for the phase rail. Conductor cross-sections of up to 35 mm² can be directly connected to the device via the terminal block with insulation in protection class IP20. The extensive range of accessories provides everything you need for your installation tasks. Numerous approvals make the S 200 M suitable for global use. Each device undergoes three rigorous tests for quality and performance before delivery.

Key specifications

Circuit breaker type
Miniature circuit breaker
Length
69 mm
Width
70 mm
mounting style
Built-in
number of poles
4
Item number
23347427

General information

Manufacturer
ABB
Category
Residual-current device
Manufacturer no.
2CDS273103R0635
Release date
7.12.2022

Circuit Breaker Features

Circuit breaker type
Miniature circuit breaker
mounting style
Built-in
number of poles
4
Tripping characteristic
B
Rated current
63 A
Rated voltage
400 V
voltage type
AC
Rated insulation voltage Ui
440 V
Protection type (IP code)
IP20

Origin

Country of origin
Germany

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece

Product dimensions

Length
69 mm
Width
70 mm
Height
88 mm
Weight
500 g
