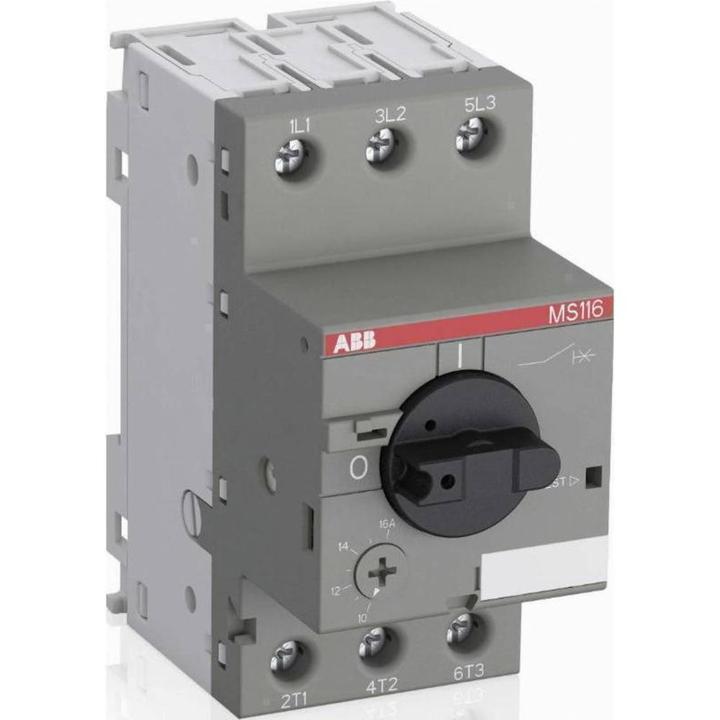

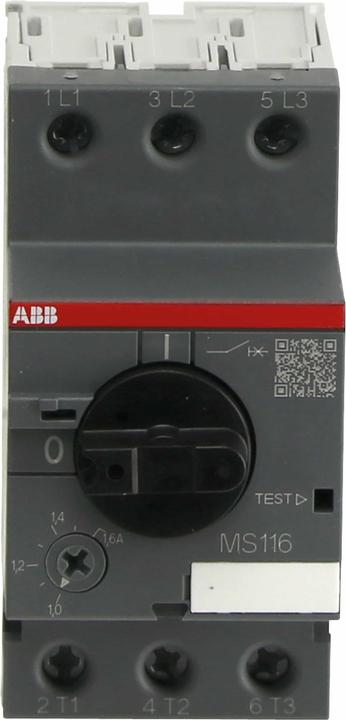

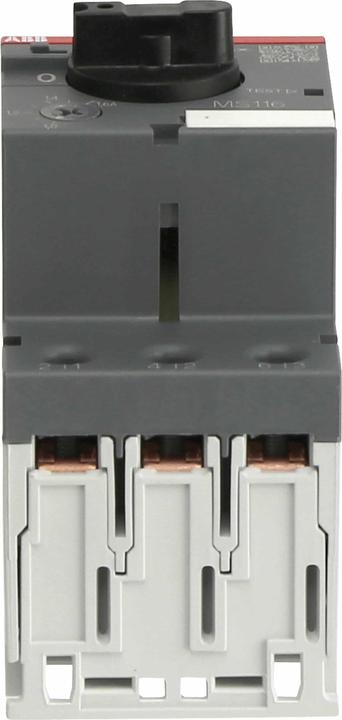

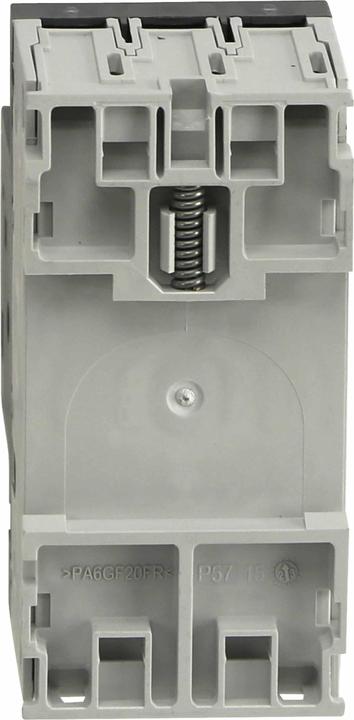

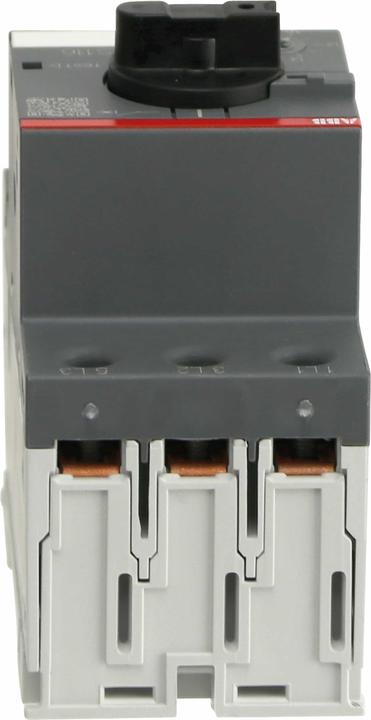

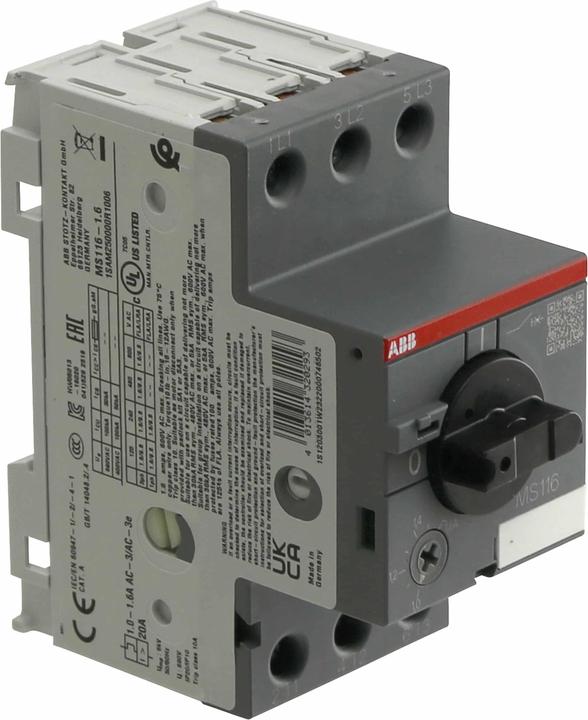

ABB Motor protection switch MS116 - 1.6

Ratings
Delivered between Fri, 4.7. and Tue, 15.7.

Product details

Motor starter type: Direct starter
Operating voltage: 690 V AC
Protection class: IP20
Phase: 1, 3
Number of poles: 3P
Motor starter mode of operation: Manual
Total length: 90 mm
Housing: Yes
Total width: 45 mm
Total depth: 80.1 mm
Series: MS116

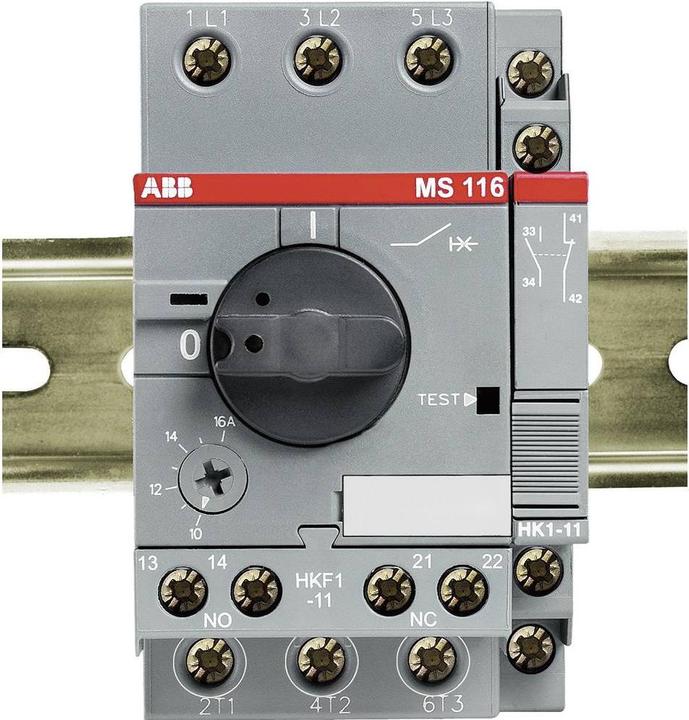

UL, CSA, ship approvals. MS 116 - Motor protective circuit breaker. Economical fuseless protection for drives up to 7.5 kW. Thermal and electromagnetic tripping. Lockable, can be used as disconnector (according to IEC/EN 60947-1). Short-circuit proof up to 50 kA. With phase loss sensitivity. Temperature compensated. Clear switch position indication by modern rotary handle movement. Low storage costs, only 11 current ranges up to 16 A. Construction width 45 mm. Accessories: HKF1 - Auxiliary switch front mounting, HK1 - Auxiliary switch side mounting right, SK1 - Signal contact for general trip indication, side mounting right, IB116 - Insulated enclosure IP65, QES 4/3N - Insulated enclosure IP55, SMO 4 - Collecting terminal for N or PE, for enclosure QES 4/3 N, UA1-230 - Undervoltage release, side mounting left.

Key specifications

Circuit breaker type
Motor protection switch
Length
85.60 mm
Width
45 mm
mounting style
Screws
number of poles
3
Item number
9727315

General information

Manufacturer
ABB
Category
Residual-current device
Manufacturer no.
1SAM250000R1006
Release date
24.9.2018
External links
Manufacturer's site (de)

Colour

Colour
Black, Grey
Exact colour description
Black, Gray

Circuit Breaker Features

Circuit breaker type
Motor protection switch
mounting style
Screws
number of poles
3
Tripping characteristic
Sluggish ---
Rated current
1 A
Rated voltage
690 V
voltage type
AC/DC
Rated insulation voltage Ui
690 V
Residual current (rated differential current)
100000 A
Protection type (IP code)
IP20

Origin

Country of origin
China

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece

Product dimensions

Length
85.60 mm
Width
45 mm
Height
90 mm
Weight
265 g

30-day right of return if unopened
24 Months Warranty (Bring-in)
