ABB IP router

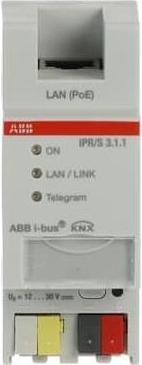

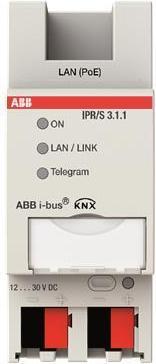

ABB Stotz S&J IP Router IPR/S3.1.1

Manufacturer: ABB Stotz S&J
Designation: IP Router REG
Type: IPR/S3.1.1
KNX Bus System: yes
KNX Wireless Bus System: no
Wireless Bus System: no
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: none
Bidirectional Wireless: no
Design: Ethernet
Mounting Type: REG
Width in Division Units: 2
Material: Plastic
Material Quality: Thermoplastic
Surface Protection: untreated
Surface Finish: matte
Color: gray
RAL Number (similar): 7035
Transparent: no
Max. Transmission Rate: 1000000 Bd
With Bus Coupling: yes
With Labeling Field: yes
With LED Display: yes
Protection Class (IP): IP20
Min. Depth of Device Box: 63.5 mm

The router serves as the interface between KNX installations and IP networks and operates according to the KNXnet/IP specification (Tunneling and Routing). The IPR/S can be used as a fast line or area coupler (Routing). The complete filter table for all main groups (0-31) can be loaded. With the ETS, KNX devices can be programmed via LAN. For this purpose and for additional clients, 5 tunneling servers are available. The IP address of the IPR/S can be set statically or received from a DHCP server. The power supply is provided via 12..30 V DC or alternatively via Power-over-Ethernet (PoE) according to IEEE 802.3af Class 1. As an alternative to the KNX standard communication (Multicast), up to 10 IPR/S 3.1.1 can communicate via Unicast.
