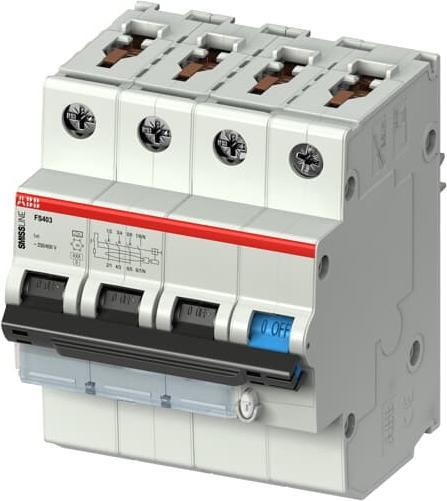

ABB FS403E-C13/0.03 FI/LS Switch 2CCL564111E0134

ABB Stotz S&J FI-LS Switch FS403E-C13/0.03

Manufacturer: ABB Stotz S&J
Designation: FI-LS Switch 3PN, C, 13A, 30mA, 6kA
Type: FS403E-C13/0.03
Number of poles (total): 4
Number of protected poles: 3
Rated voltage: 415 V
Rated insulation voltage Ui: 500 V
Rated impulse voltage withstand Uimp: 4 kV
Rated current: 13 A
Rated residual current: 0.03 A
Residual current type: A
Energy limitation class: 3
Rated tripping capacity according to EN 61009: 6 kA
Rated tripping capacity according to IEC 60947-2: 6 kA
Rated breaking capacity Icn according to EN 61009-1: 6 kA
Tripping characteristic: instantaneous
Surge current withstand: 0.25 kA
Type of voltage: AC
Frequency: 50/60 Hz
Tripping characteristic: C
Switched neutral conductor: no
With locking device: yes
Overvoltage category: 3
Degree of pollution: 2
Ambient temperature during operation: -25 to 40 °C
Width in modular units: 3
Installation depth: 91 mm
Flush-mounted: no
Protection against unwanted tripping: no
Protection class (IP): IP20
Connectable conductor cross-section single-core: 0 to 35 mm²
Connectable conductor cross-section multi-core: 0 to 35 mm²

ABB Stotz S&J FI-LS Switch FS403E-C13/0.03: further details
FI/LS switches (RCBOs) provide protection for persons and property as well as protection against electrically ignited fires in accordance with DIN VDE 0100-410 and DIN VDE 0100-530. They ensure protection of circuits against overload and short-circuit currents, protection against sinusoidal alternating currents and pulsating currents with smooth DC fault currents of up to 6 mA to earth. They also provide fault protection (protection against indirect contact), additional protection (with I?n = 30 mA), and fire protection (with I?n = 300 mA). They comply with the product standard IEC/EN 61009-1 (VDE 0664-20). The connection is made directly via the Smissline TP socket system.
