Product details

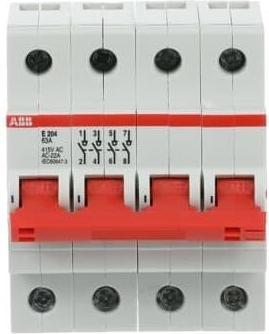

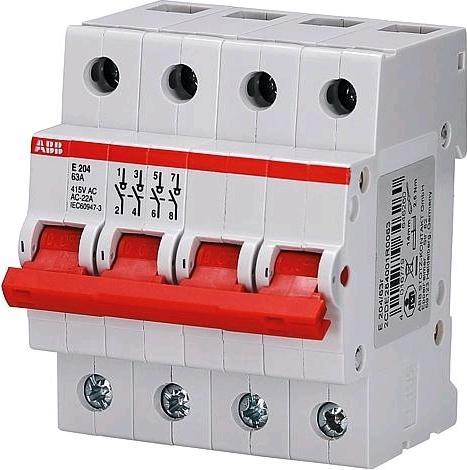

ABB Stotz S&J Built-in Switch E204/63R

Manufacturer: ABB Stotz S&J
Designation: Built-in switch 400V, 63A
Type: E204/63R
Switching function: Disconnect switch
Number of contacts as normally closed: 4
Number of poles: 4
Rated current: 63 A
Rated voltage: 400 V
Minimum rated voltage: 12 V
Short-circuit strength (Icw): 25 kA
Type of voltage: other
With signal lamp: no
Color of the dome: gray
Width in division units: 4
Installation depth: 70 mm
Degree of protection (IP): IP10
Printing/marking: none
Forced disconnection (according to DIN VDE 0113): yes

Further details: Load disconnect switch E 200 for DIN rail mounting according to DIN EN 60715 available with rated currents from 80 to 125 A and conditional rated short-circuit current of 25 kA. Additional auxiliary contacts S2C-H6R can be mounted. Quick removal without disassembly of the phase rail is possible, and the use of non-loosening screws is included. Locking device as an accessory prevents unauthorized ON/OFF switching. Certified according to approvals VDE, CCC, EAC, KEMA. EAN: 4016779646260.

Key specifications

Circuit breaker type
Circuit breaker
Mounting type
Top-hat rail
number of poles
4
Length
70 mm
Width
70 mm

General information

Item number
17823872
Manufacturer
ABB
Category
Residual-current device
Manufacturer No.
2CDE284001R0063
Release date
10.12.2021

Colour

Colour
Multicoloured
Exact colour description
Grey

Circuit Breaker Features

Circuit breaker type
Circuit breaker
Mounting type
Top-hat rail
number of poles
4
Rated current
63 A
Rated voltage
400 V
voltage type
AC
Insulation voltage (Ui)
400 V
Protection type (IP code)
IP10

Origin

Country of origin
Bulgaria

Sustainability

Manufacturer commitment
RE100

Voluntary climate contribution

CO₂ emissions
20.44 kg
Climate contribution
CHF 0.49

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Length
70 mm
Width
70 mm
Height
85 mm
Weight
390 g
