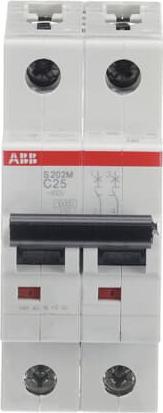

ABB Automatic circuit breaker S200 type C 25A 10kA

Range: System M Pro
Series: S200
Number of poles: 2
Rated current: 25 A
Tripping characteristic: Type C
AC rated voltage: 440 V
DC rated voltage: 125 V
Breaking capacity: 10 kA
Length: 88 mm
Width: 35 mm
Depth: 75.8 mm

ABB System Pro M compact S200M double pole 10 kA type C. ABB System Pro M compact S200M miniature circuit breakers are current limiting. They feature two different tripping mechanisms: the delayed thermal tripping mechanism for overload protection and the electromechanical tripping mechanism for short-circuit protection. All S200M series MCBs comply with IEC/EN 60898-1 and IEC/EN 60947-2, making them suitable for residential, commercial, and industrial applications. A lower auxiliary contact can be mounted on S200M to save 50% space.

Features and Benefits:

• Extra wide and complete range of MCBs for most applications and markets
• Space and time saving due to unique bottom mounting auxiliary contact
• Meets worldwide standards for domestic or small commercial installations up to 10 kA breaking capacity

Standards:

• IEC 60898: Refers to low voltage circuit breakers for use in domestic and similar installations, traditionally known in the UK as miniature circuit breakers.
• IEC 60947-2: Refers to low voltage circuit breakers for use in industrial and similar installations, traditionally known in the UK as compact circuit breakers and also as open circuit breakers.

Tripping curve C: Characteristic C tripping occurs at 5 to 10 times the rated current, suitable for circuit protection and general applications.

Notice: Classic and System Pro M products cannot be mixed, and they do not share common accessories. System Pro M series products can only be mounted in new type Protecta distribution boxes.
