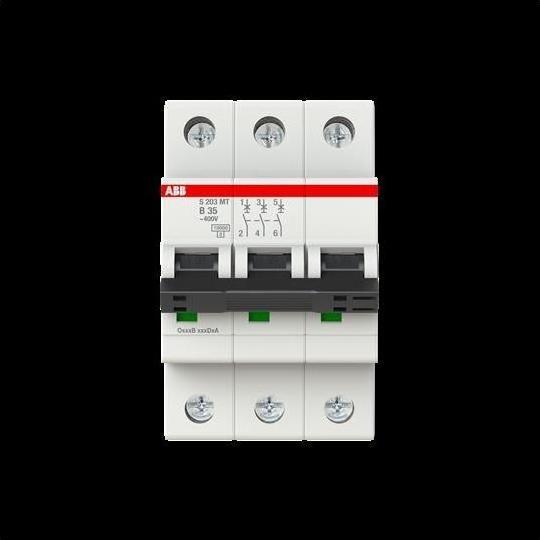

ABB Stotz S&J Circuit Breaker B-Characteristic S203MT-B35

Manufacturer: ABB Stotz S&J
Designation: Circuit Breaker B-Characteristic 10kA, 35A, 3P
Type: S203MT-B35
Installation Depth: 69 mm
Tripping Characteristic: B
Number of Poles (total): 3
Number of Protected Poles: 3
Rated Current: 35 A
Rated Voltage: 400 V
Rated Insulation Voltage Ui: 440 V
Rated Impulse Voltage Uimp: 4 kV
Voltage Type: AC
Frequency: 50..60 Hz
Energy Limitation Class: 3
Flush Mounting: no
Switching Neutral Conductor: no
Overvoltage Category: 3
Degree of Pollution: 3
Additional Devices Possible: yes
Protection Class (IP): IP20
Ambient Temperature During Operation: -40..70 °C
Connectable Conductor Cross-Section Multistranded: 0.75..25 mm²
Explosion-Proof: no

The S200MT series circuit breakers are specifically designed for the railway sector and protect cables and lines against overload and short circuit according to DIN VDE 0100-430 and DIN VDE 0100-530. They comply with the construction regulations DIN VDE 0641-11 or IEC/EN 60898-1, DIN VDE 0660-101 or IEC/EN60947-2, hazard level R26/HL3 according to DIN EN 45545, and requirement class 3 according to NF F 16-101/102 (I2-F3) as well as category 1 - class A/B (mounted) according to IEC 61373.

Its patented terminal block ensures easy and secure contact and handling via a pressure plate. For better visibility during wiring, the connection opening for conductors is located above the connection opening for the phase busbar. The actual switching position is displayed through a viewing window, even when the switch lever is blocked. Conductor cross-sections up to 25 mm² can be directly connected to the device via the terminal block with insulation in protection class IP20. The extensive range of accessories provides everything you need for your installation tasks. Each device undergoes three intensive tests for quality and performance before delivery.

EAN: 4016779122771.
