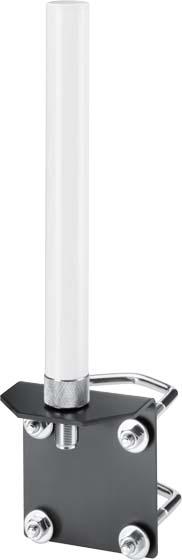

Siemens Antenna IWLAN 6GK57956MP000AA0

ANT795-6MP IWLAN antenna with omnidirectional characteristics, including N-Female connector: 5/7 dBi, IP65/67 (-40 to +80 °C), 2.4/5 GHz Wi-Fi. Please note compliance and country approvals. Mounting on wall or mast, compact manual in German/English. Package includes: 1x ANT795-6MP, 1x mounting aid.

Usage for Industrial Wireless LAN (IWLAN) and WLAN according to IEEE 802.11 at 2.4 GHz and 5 GHz with data rates of up to 450 Mbit/s to optimize transmission and reception conditions. The antenna is connected to access points or clients via an IWLAN antenna connection cable.

Examples of use:

• Illuminating an area with a mast available in the center for mounting the antennas, even under harsh environmental conditions, e.g., outdoor areas, salty air.
• Comprehensive illumination of a production cell or a robotic station.
• The concentration of the radio field around the antenna improves connection quality.
• Investment protection through compliance with the globally recognized standard IEEE 802.11.
• Cost-effective connection to devices in remote, hard-to-reach, or aggressive environments.
