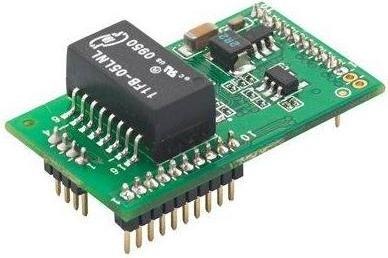

Moxa MIINEPORT E2-H-T - Embedded Device Server für TTL-Geräte, Drop-in-Modul

Moxas eingebettete Seriell-zu-Ethernet-Geräteservermodule sind kompakt, energieeffizient und einfach zu integrieren.

Eingebetteter Geräteserver für TTL-Geräte, Drop-in-Modul, 10/100M ohne RJ45-Anschluss, 50 bps bis 921,6 Kbps Baudrate, -40 bis 85°C Betriebstemperatur

Embedded System

• CPU 32-bit Arm Core

Memory

• Flash 2 MB
• SDRAM 4 MB

Input/Output Interface

• Configurable DIO Channels (by software) 4

Ethernet Interface

• 10/100BaseT(X) Ports, Auto MDI/MDI-X 4-pin pin header
• Magnetic Isolation Protection 1.5 kV (built-in)

Ethernet Software Features

• Configuration Options Web Console (HTTP), Windows Utility
• Management ARP, BOOTP, Device Search Utility (DSU), DHCP Client, IPv4, SMTP, SNMPv1, TCP/IP, Telnet, TFTP, UDP, ICMP
• Windows Real COM Drivers Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
• Linux Real TTY Drivers Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x
• Fixed TTY Drivers SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
• Android API Android 3.1.x and later

Serial Interface

• No. of Ports 1
• Serial Standards TTL
• Operation Modes Real COM mode, RFC2217 mode, TCP Client mode, TCP Server mode, UDP mode, Ethernet Modem mode, MCSC mode
• Baudrate 50 bps to 921.6 kbps
• Data Bits 5, 6, 7, 8
• Stop Bits 1, 1.5, 2
• Parity None, Even, Odd, Space, Mark
• Flow Control None, RTS/CTS, DTR/DSR, XON/XOFF

Serial Signals

• TTL TxD, RxD, RTS, CTS, DTR, DSR, DCD, RST (reset circuit), GND

NetEZ Technology

• NetEZ Functions EZPower, EZPage, SCM (Serial Command Mode), AutoCFG, MCSC (Multi-Channel Serial Communication)

Power Parameters

• Input Current 157 mA @ 3.3 VDC
• Input Voltage 3.3 to 5 VDC

Physical Characteristics

• Dimensions 29 x 17 x 12.6 mm (1.14 x 0.67 x 0.50 in)
• Weight 5 g (0.01 lb)
• Form Factor Type Drop-in...
