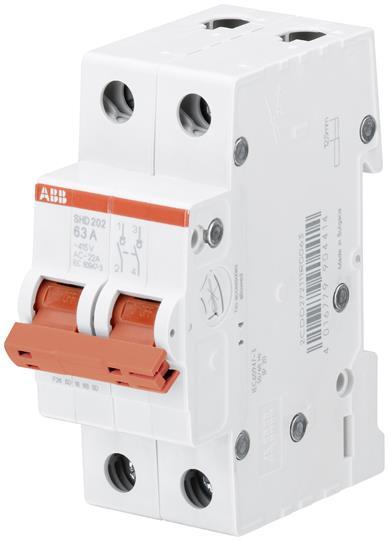

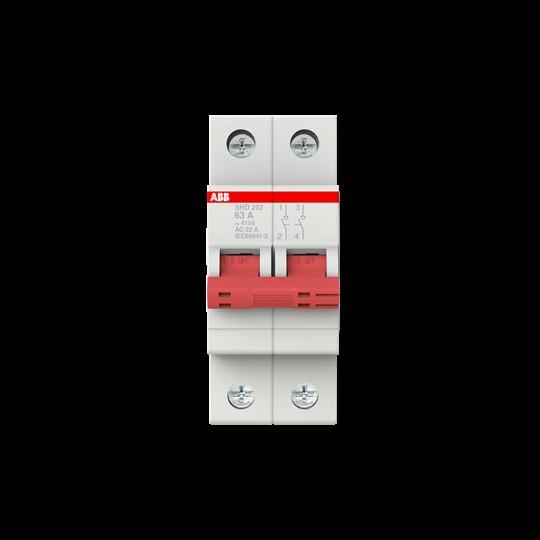

ABB SHD202/63 switch-disconnector 2P, 63A 2CDD272111R0063

Ratings
Delivered between Fri, 29.8. and Tue, 16.9.

Product details

ABB Stotz S&J Load Break Switch SHD202/63

Manufacturer: ABB Stotz S&J
Designation: 2-pole Load Break Switch, 63A
Type: SHD202/63
Switching Function: Disconnect Switch
Number of Contacts as Normally Open: 2
Number of Poles: 2
Rated Current: 63 A
Rated Voltage: 415 V
Minimum Rated Voltage: 12 V
Rated Short-Circuit Breaking Capacity: 25 kA
Type of Voltage: AC/DC
With Indicator Lamp: no
Color of the Dome: gray
Width in Division Units: 2
Installation Depth: 69 mm
Protection Class (IP): IP20
Printing/Labeling: without forced disconnection (according to DIN VDE 0113): yes

The SHD 200 expands the proven pro M compact system with a new series of load break switches. The new series is available in 1- to 4-pole versions with rated currents from 16 to 63 A and has disconnecting properties according to DIN EN 60947-3. The operating voltage of 240/415 V AC, along with a conditional short-circuit strength of 10 kA, ensures a wide range of applications.

Key specifications

Circuit breaker type
Circuit breaker
Length
69 mm
Width
2 mm
mounting style
Top-hat rail
number of poles
2
Item number
33833921

General information

Manufacturer
ABB
Category
Residual-current device
Manufacturer no.
2CDD272111R0063
Release date
17.5.2023

Colour

Colour
Multicoloured
Exact colour description
Multicoloured

Circuit Breaker Features

Circuit breaker type
Circuit breaker
mounting style
Top-hat rail
number of poles
2
Tripping characteristic
A
Rated current
63 A
Rated voltage
415 V
voltage type
AC/DC
Rated insulation voltage Ui
415 V
Protection type (IP code)
IP20

Origin

Country of origin
Bulgaria

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece

Product dimensions

Length
69 mm
Width
2 mm
Height
69 mm

30-day right of return if unopened
24 Months Warranty (Bring-in)
