Top-rated products in the Inducers category
Here's a ranking of the top rated products in this category. To give you a quick overview, we've also added some key information about the products.
1. Roxburgh EMC In Line Filter 10 Amp
Rated current max. = 10A
Operating voltage max. = 250 V ac
Mounting type = Free standing
Connection type = Plug-in connector
Series = PMF10
Operating frequency = 60Hz
Length = 112mm
Depth = 62mm
Height = 31mm
Dimensions = 112 x 62 x 31mm
Operating temperature min. = -25°C
Operating temperature max. = +85°C
Resistance = 8mΩ
Power loss = 0.8W
BS EN 60950 EN60320 IEC320. PMF10 free standing IEC in line filter - high performance 10Amp. This portable mains filter is equipped with a C14 input and C13 connecting lead, with 220mm wire. 10A free standing IEC320 style high performance filter network includes an earth line choke and across the line VDR. Works alongside electrical equipment where space is limited. For use with products which may be subject to high levels of mains borne interference and voltage spikes.

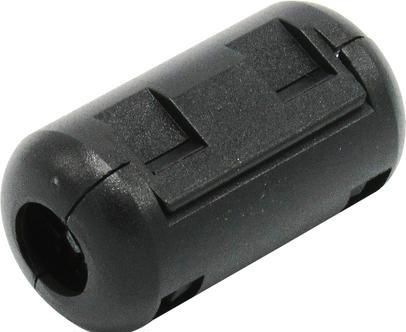

2. RND Components Folding Ferrite 7.5 mm 245Ohm @ 100MHz
The RND Components clamp ferrite is a highly advanced inductor specifically designed for applications at a frequency of 100 MHz. With an inner diameter of 7.5 mm and an impedance of 245 Ohms, this ferrite provides an effective solution for reducing interference in electrical circuits. The clamp ferrite is round in shape and is ideally suited for cables with a diameter of 7.5 mm. The flammability rating UL 94 V-0 ensures high safety and reliability in various applications. Its compact design and the use of high-quality core material make this inductor an excellent choice for demanding electronic projects.
- Inductance of 245 mH for improved signal quality
- Suitable for cable diameters of 7.5 mm
- Flammability rating UL 94 V-0 for increased safety
- Optimized for frequencies up to 100 MHz.

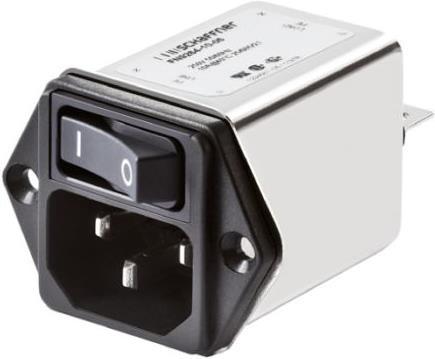

3. Schaffner EMV IEC Inlet filter 2-pole switched 10A
Rated current max: 10A
Operating voltage max: 250 V ac
Mounting type: Flange mounting
Connection type: Solder strip
Series: FN9264
Operating frequency: 50 to 400Hz
Length: 51.45mm
Depth: 46mm
Height: 35mm
Dimensions: 51.45 x 46 x 35mm
Operating temperature min: -25°C
Operating temperature max: +85°C
Resistance: 1MΩ
FN9264 - Switched IEC filter. The FN9264 IEC inlet filter combines an IEC inlet and line filter with excellent filter attenuation in a small form factor. A wide range of current ratings, mounting options, and filters for medical applications have been developed to provide various solutions. Compact design, rated currents up to 10 A, complies with IEC/EN 60601, high quality 2-pole toggle switch, good attenuation performance, Faston terminals for easy mounting.

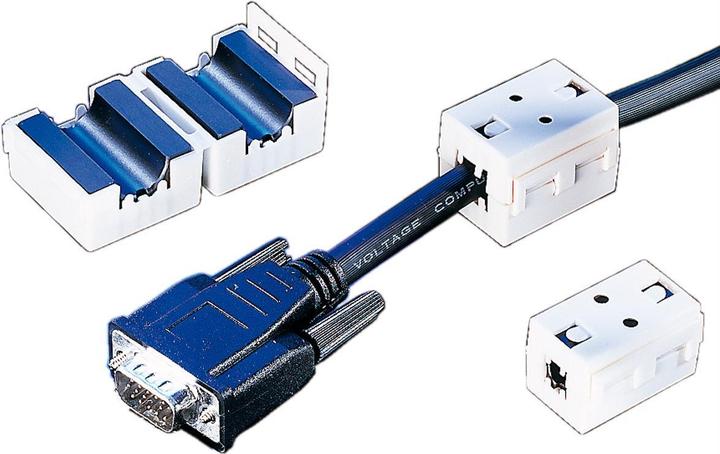

4. Roline Ferrite filter, 6.5mm
The Roline ferrite filter is an effective accessory for reducing interference in data lines, specifically designed for use with PCs and their peripherals. With an inner diameter of 6.5 mm, the filter can be easily installed retroactively, making it a practical solution for minimizing electromagnetic disturbances. The filter features a split core design that allows for straightforward installation, and the nylon clip housing ensures that the filter remains securely attached to the cable. The housing is made from UL 94-V-O material, which makes it particularly robust and resistant to damage. To ensure optimal performance, the filter should be installed no more than 10 cm from the connector. This ferrite filter is universally applicable and provides a reliable solution for improving signal quality in various applications.
- Easy retroactive installation thanks to the split core design
- Durable nylon clip housing protects against damage
- Universal application for various data lines
- Housing material meets UL 94-V-O standards for high safety
- Optimal installation position within 10 cm of the connector.
5. RND Components EMI filter 20A 250VAC
The EMI filter 20A 250VAC from RND Components is a highly advanced inductor specifically designed to reduce electromagnetic interference (EMI) in electrical systems. With a rated voltage of 250 VAC and a rated current of 20 A, this filter provides reliable performance across a variety of applications. The filter operates in a temperature range of -25 °C to 85 °C, making it suitable for use in different environments. The inductance of 4 mH and the capacitances of 100 nF (Cx) and 10 nF (Cy) ensure effective filtering of disturbances. The EMI filter is equipped with quick connections that facilitate easy installation and enhance system efficiency.
- Operating temperature range of -25 °C to 85 °C
- Inductance of 4 mH for effective EMI reduction
- Leakage current of only 2 mA for high safety
- Quick connection for easy installation.
6. Epcos Mains filter, 6A, 250VAC, quick connection
The Epcos network filter is a highly advanced EMC filter device designed for use in various electrical applications. With a rated voltage of 250 VAC and a rated current of 6 A, this filter provides reliable performance and protects against electromagnetic interference. The filter type is specifically designed to enhance signal quality and minimize disturbances, making it ideal for use in sensitive electronic devices. The operating temperature ranges from -25 °C to 85 °C, allowing for broad applicability in different environments. The quick connection feature ensures easy and fast installation, while the compact dimensions of the filter allow for flexible integration into existing systems.
- Inductance of 4.7 mH for effective filtering
- Maximum operating temperature of 85 °C
- Leakage current of only 369 µA for high safety
- Flammability class UL 94 V-0 for additional fire protection measures
- Compact dimensions for easy integration into various applications.
7. Roline Ferrit Filter
The Roline ferrite filter is an effective tool for reducing interference in data lines, specifically designed for use with PCs and their peripherals. Featuring a split core design, this filter allows for easy retrofitting, making it ideal for upgrading existing cable connections. The sturdy nylon clip housing ensures that the filter is securely attached to the cable while also protecting it from damage. The ferrite filter is universally applicable and should be installed no more than 10 cm from the connector to achieve optimal results. With an inductance of 290 mH and a rated current of 130 A, this filter provides a reliable solution for reducing electromagnetic interference in data lines.
- Easy retrofitting thanks to the split core design
- Sturdy nylon clip housing for secure attachment
- Protection against damage during operation
- Universal application for various data lines
- Optimal installation position: no more than 10 cm from the connector.
8. Tru Components Mains filter with IEC socket
Line filter for universal use in any device. Optimum attenuation is obtained in the higher frequency range through the metal contact (flange/casing).
9. Epcos Ferrite toroidal core
Ferrite toroidal core, type B64290L0048X830, outer diameter 35.5 mm, height 13.6 mm, inductance AL 5.46 µH, inner diameter 19.2 mm, relative magnetic permeability 4300, core size R34/20.5/12.5, core material grade N30.
10. Schaffner EMV Appliance plug with filter, 10A, 250VAC
The Schaffner EMV device plug with filter is a highly advanced product designed for use in various electrical applications. With a rated voltage of 250 VAC and a rated current of 10 A, this inductor provides reliable performance and protects against interference. The filter type is an IEC inlet filter, ensuring effective filtering of electromagnetic disturbances. The device plug is suitable for operating temperatures ranging from -25 °C to 85 °C, making it versatile. Its robust construction and IP40 protection rating ensure high reliability and durability in different environments. Featuring a Faston terminal connection system, the device plug is easy to install and use. The integrated fuse provides additional protection and safety during operation.
- Inductance of 320 µH for effective filtering
- Operating temperature range from -25 °C to 85 °C
- Integrated fuse for additional protection
- IP40 protection rating for reliable operation
- Faston terminal connections for easy installation.
