Best selling TV mounting solutions (universal) from Chief

On this page you'll find a ranking of the best Chief products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

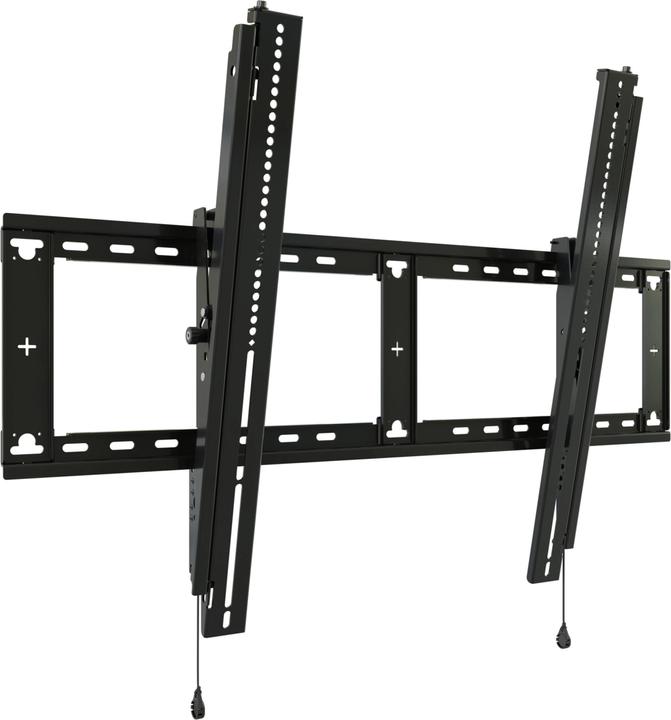

1. Chief RXT3 wall bracket

The Fit series RXT3 is an extra-large tilt display wall mount for 49” to 98” typical display sizes and supports mounting patterns up to 915 x 650 mm. This next-generation design features 0.75” (19 mm) post-installation leveling, a robust wall plate design supporting up to 250 lbs (113.4 kg), a 2.5” (64 mm) low-profile depth, up to 12° tilt, and is approved for UL and TUV safety standards.

2. Chief THINSTALL TS318T Medium Dual Swing Arm Wall Mount - 18" Extension - Mounting

Medium-sized THINSTALL display wall mount with two swivel arms. A lightweight, flat, and fully movable display wall mount for TVs ranging from 32 to 65 inches. Can be easily installed by one person by mounting the upper rail and sliding it onto the assembly. Wall installation is possible when TA501 is purchased with the mount.

3. Chief FIT Series mounting kit (wall mounting, stand)

Chief FIT Series - Mounting Kit (Wall Mount, Stand) - Extended Tilt for LCD Display - Landscape - Black. Screen Size: 109.2-215.9 cm (43"-85"). Model: FIT Series. Product Description: Chief FIT Series - Mounting Kit - Extended Tilt for LCD Display - Landscape - Black. Product Type: Mounting Kit (Extended Tilt). Mounting Components: Wall Mount, Stand. Dimensions (Width x Depth x Height): 96.5 cm x 6.8 cm x 48.7 cm. Tilt: -10 ° to 10 °. Levelling: 19 mm Adjustments. Recommended Use: LCD Display. Recommended Display Size: 109.2-215.9 cm (43"-85"). Max. Mounting Pattern Size: 863 x 450 mm. Max. Load Weight: 68 kg. Colour: Black. Package Contents: Allen key. Designed for P/N: CSMP9X12, CSSMP15X10, PAC526, PACSBM. General Width: 96.5 cm. Depth: 6.8 cm. Height: 48.7 cm. Colour: Black. Package Contents.

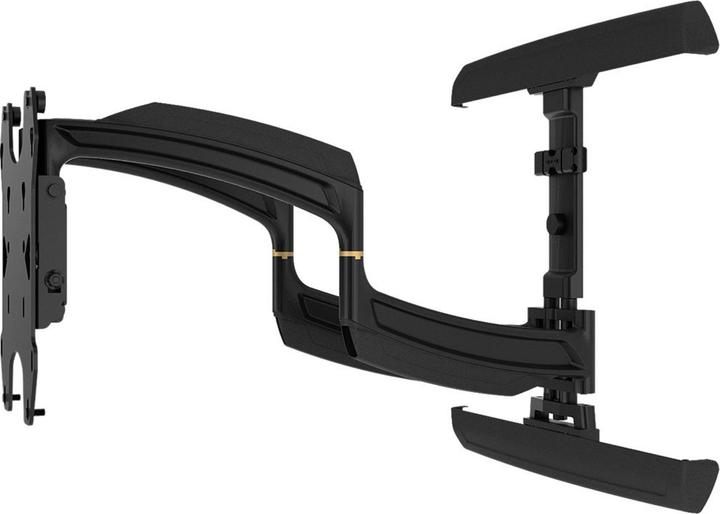

4. Chief THINSTALL Wall Display Mount with Dual Swing - For monitors 42-75" - Bracket - f

Large THINSTALL display wall mount with two swivel arms. A lightweight, fully movable display wall mount with a low profile for TVs ranging from 42 to 75 inches. It can be easily installed by one person by mounting the upper rail and sliding it onto the assembly. Wall installation is possible when the TA500 is purchased with the mount. Low profile: Slim design collapses to 2.0 inches (50 mm) (without interface) or 2.1 inches (53 mm) (with interface). The ultra-flat profile facilitates ADA compliance when installed with a TA500 recessed box. Extends up to 25 inches (635 mm). Full extension maximizes viewing potential.

Technical specifications:
Manufacturer: Chief Manufacturing
Product group: Professional AV
Product type: Display wall mounts
Color: black
Load capacity: 56.7 kg
Adjustment type: mechanical
Tiltable: yes
Height adjustable: no
Rotatable: partially
Max. screen diagonal (cm): 190 cm
Max. screen diagonal (inches): 75 inches
Min. screen diagonal (cm): 106 cm
Min. screen diagonal (inches): 42 inches
VESA 100 x 100 mm: yes
VESA 200 x 100 mm: yes
VESA 200 x 200 mm: yes
VESA 300 x 200 mm: yes
VESA 300 x 300 mm: yes
VESA 400 x 200 mm: yes
VESA 400 x 300 mm: yes
VESA 400 x 400 mm: yes
VESA 600 x 200 mm: yes
VESA 600 x 400 mm: yes
VESA 600 x 500 mm: yes
VESA 700 x 500 mm: yes
VESA 800 x 400 mm: yes
Weight: 20 kg
Package weight: 20 kg
Gross weight: 20 kg.

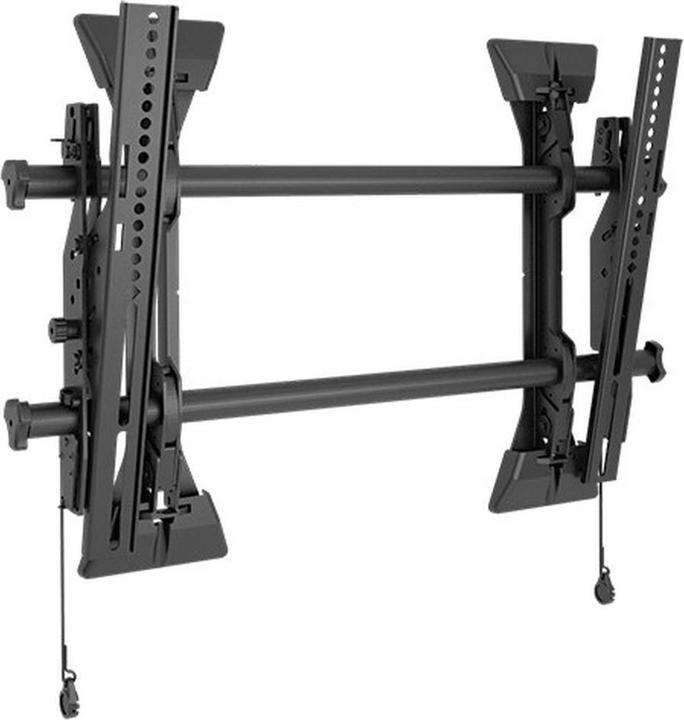

5. Chief Mtm1u

Chief upgraded fixed wall mounts based on installer feedback and direct observations of installers in the field. Many new features join Fusion favourites like centreless shift, Centris tilt, ControlZone leveling adjustment and ClickConnect latching.

New benefits include added stability, faster installation, improved lateral shift, easier cable management and enhanced security.

Installer-inspired Fusion tilt mount solves top flat panel installation problems, offering flexible adjustments for large displays with a low-profile display mounting solution.

- Integrated teardrop design speeds up wall plate installation by allowing pre-installation of the bolts to the wall
- Centreless shift provides up to 17.5" (445 mm) of post-installation lateral shift - 8.75" (222 mm) left/right of uprights - for limitless centring
- Centris low-profile tilt uses the centre of gravity to balance the screen while maintaining a low profile
- Set screws keep the mount rigid, stable and secure throughout the life of the installation
- ClickConnect offers an audible click when the screen safely engages with the mount
- Built-in cable stand provides easy access under the screen
- A full line of accessories can be installed with the mount and the entire unit can be adjusted together
- Multiple installation options for various stud distances
- Exclusive nesting spacers can be stacked to achieve any depth
- Quick-Store cords use magnets to easily store and access pull cords
- Improved cable management with new end caps
- Integrated security
- Ships with a custom hardware kit that can be hung from mount rails if installing in stages
- Easy open box with less waste to throw away.

6. Chief Lsm1u

The integrated teardrop design accelerates the installation of the wall plate, as the bolts can be attached to the wall before installation. ControlZone leveling allows for fine adjustments of height and leveling after installation. Centerless shift offers up to 441 mm of lateral shift after installation for limitless centering. Set screws keep the mount rigid, stable, and secure throughout the entire lifespan of the installation.

ClickConnect provides an audible click when the screen securely locks into the mount. The built-in cable stand allows for easy access underneath the screen. A complete range of accessories can be installed alongside the mount, and the entire unit can be adjusted together. There are multiple installation options for different bolt spacings. Exclusive stackable spacers can be stacked to achieve any desired depth.

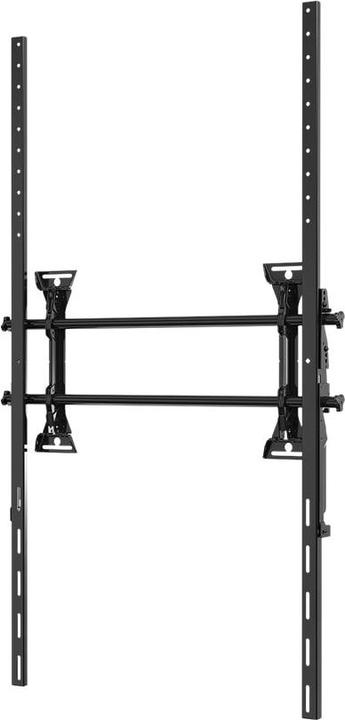

7. Chief Kitxwxsm1up

The ultrawide micro-adjustable static wall mount, extra-large kit leverages Fusion features to support displays with a 21:9 aspect ratio and ultrawide mounting patterns (up to 1954 mm x 600 mm) in a secure, easy-to-install solution.

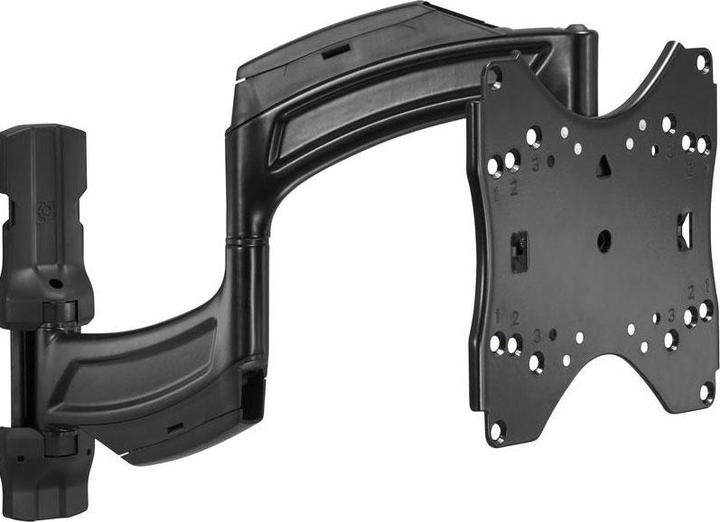

8. Chief THINSTALL TS218SU Medium Dual Swing Arm Wall Mount - 18" Extension - Mounting

- Ultra low profile sleek design collapses to 1.5” (38 mm), providing an ultra-low profile for all types of TVs, including LED, LCD, and plasma.
- Extends up to 18” (457 mm). Full extension maximizes viewing potential.
- Centris™ low-profile tilt provides up to 12° of effortless fingertip tilt to achieve optimal viewing angles.
- Integrated cable management with enclosed, tool-free cable covers makes it easy to route power and signal cables, and connect to the wall for a seamless installation.
- Post installation height adjustment allows for a total of 1" (25 mm) of height adjustment for perfect screen placement and alignment.

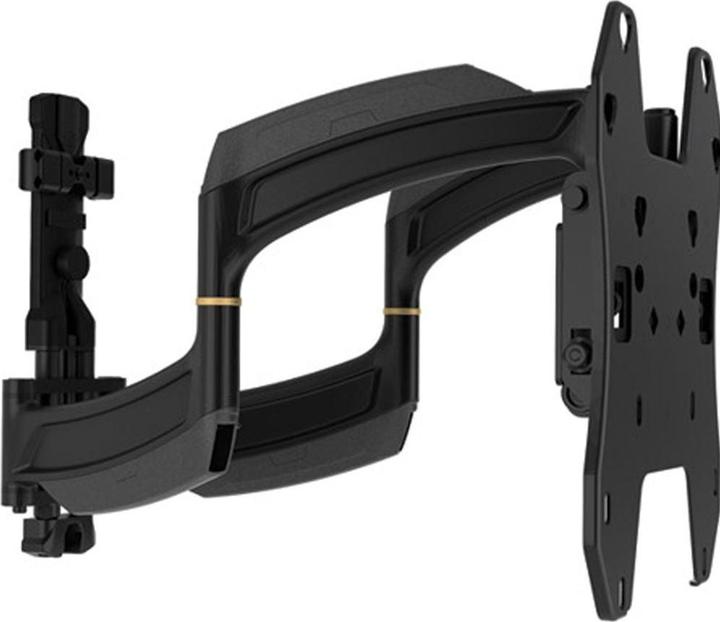

9. Chief Wandhalter TS318SU Mittelgrosse THINSTALL, Display-Wandhalterung mit 2 Schwenkarmen

Medium-sized THINSTALL™ display wall mount with two swivel arms – 18-inch extension. A lightweight, flat, and fully movable display wall mount for TVs ranging from 26 to 52 inches. Ultra-slim design: The sleek design folds down to 33 mm (1.3 inches), providing an ultra-flat profile for all types of TVs, including LED, LCD, and plasma. It extends up to 18 inches (457 mm). Full extension maximizes viewing potential. Centris™ low-profile tilt: Offers effortless tilting of up to 15° with a fingertip to achieve optimal viewing angles. Integrated cable management: Closed, tool-free cable covers and a wide-opening wall plate make it easy to route power and signal cables and connect to the wall for a seamless installation. Height adjustment after installation: A total height adjustment of 1 inch (25 mm) after installation allows for perfect placement and alignment of the screen.

Technical specifications:
Manufacturer: Chief Manufacturing
Product group: Professional AV
Product type: Display wall mounts
Color: black
Maximum load capacity: 34 kg
Adjustment option: adjustable spring tensioner
Tiltable: yes
Height adjustable: no
Rotatable: partially
Max screen diagonal (cm): 165 cm
Max screen diagonal (inches): 65 inches
Min screen diagonal (cm): 81 cm
Min screen diagonal (inches): 32 inches
VESA 100 x 100 mm: yes
VESA 200 x 100 mm: yes
VESA 200 x 200 mm: yes
VESA 300 x 200 mm: yes
VESA 300 x 300 mm: yes
VESA 400 x 200 mm: yes
VESA 400 x 300 mm: yes
VESA 400 x 400 mm: yes
VESA 600 x 200 mm: yes
VESA 600 x 400 mm: yes
Height: 343 mm
Width: 574 mm
Depth: 46 mm
Weight: 9.39 kg
Packaging height: 0 mm
Packaging width: 0 mm
Packaging depth: 0 mm
Package weight: 9.39 kg
Gross weight: 9.39 kg.

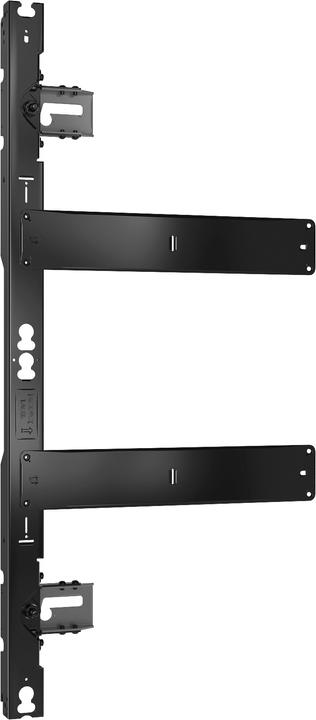

10. Chief TILD1X1US-L Video Wall Screen Holder

The TiLED LED video wall mounting system is modular and contains left, middle, and right wall mounting components. The TILD1X1US-L is 1,000 mm tall and is used on the left side of a Unilumin USLIM Series video wall configuration. Mix and match a variety of components to create endless video wall configurations. Essential X, Y, and Z-axis adjustments allow perfect positioning and alignment for a flawless video wall.

TiLED direct view LED mounting solutions are in stock and ready to ship with no custom lead times or project registration required. Easy to specify, order, and install. Turn your creative vision into a reality.
