Product details
For use with: SIMATIC S7-1200
Voltage category: 24 VDC
Length: 100 mm
Width: 45 mm
Depth: 75 mm
Dimensions: 100 x 45 x 75 mm

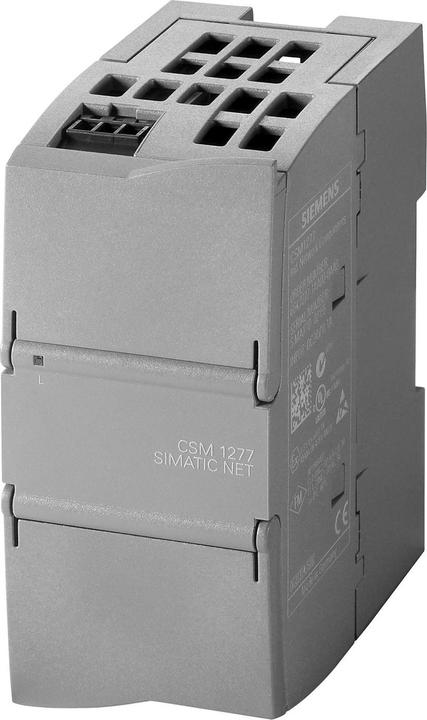

S7-1200 – Ethernet communication modules. Unmanaged switch for connecting a SIMATIC S7-1200 to an industrial Ethernet network with line, tree, or star topology. For the additional connection of up to three programming devices, control elements, and other Ethernet nodes. Mounting on the SIMATIC S7-1200 mounting rail. Cost-effective solution for implementing small, local Ethernet networks. Connection using RJ45 standard connectors. Simple and quick status indication via LEDs on the device. Integrated auto-crossover functionality allows the use of straight-through connection cables. Transmission speed of up to 100 Mbit/s. Operating temperature range: 0 to +70 °C. Protection class IP20.
Item number | 9718510 |
Manufacturer | Siemens |
Category | Home automation |
Manufacturer no. | 6GK72771AA100AA0 |
Release date | 18.6.2021 |
Automation type | Industrial automation |
Manufacturer Type | 6gk7277-1aa10-0aa0 |
mounting style | Top-hat rail |
Power consumption | 1.60 W |
Power | 1.60 W |
Power supply | Electrical connection |
Country of origin | China |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer Siemens fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 1 piece |
Length | 75 mm |
Width | 45 mm |
Height | 100 mm |
Weight | 230 g |
