Shuttle Sz170r8v2

Ratings
Currently out of stock
Free shipping starting at 50.–

Product details

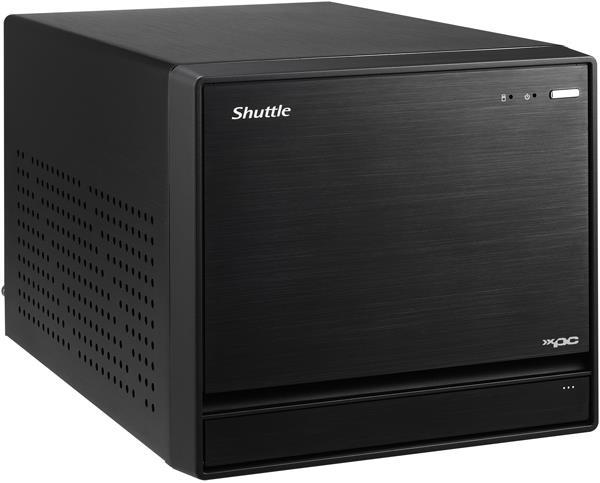

With the Shuttle XPC Cube Barebone SZ170R8V2, Shuttle supports four 3.5" hard drives in a cube case for the first time, allowing for a total storage capacity of up to 40 TB for home applications and commercial purposes. Additionally, the barebone accommodates an M.2 SSD card with a PCI-Express interface, enabling transfer rates up to 2.5 GB/s, which is four times faster than previous SATA SSDs. However, the platform is not only suitable as a storage solution in a stylish aluminum case but also provides enough power to serve as a high-end gaming PC or a workstation for graphic applications and video editing. The motherboard, equipped with Intel's Z170 chipset, supports LGA1151 "Skylake" CPUs, including the most powerful Core i7 models from the K series. Furthermore, large dual-slot graphics cards and up to 64 GB of DDR4 memory are possible.

Key specifications

Internal connection options
M.2 (2x), S-ATA III (4x)
Network connections
RJ45 (1x)
Video connections
DisplayPort (2x), HDMI (1x)
Memory type
DDR4-RAM
USB ports
USB-A
Item number
6168743

General information

Manufacturer
Shuttle
Category
Barebones
Manufacturer no.
PC-SZ170R821
Release date
1.3.2017

Barebone properties

Design
Small Form

Processor

Number of processors
1 x
Socket
LGA 1151
Max. TDP
95 W

Memory

Memory type
DDR4-RAM
Memory form factor
DIMM
Number of pins
288 x
Memory chip compatibility
DDR4-2133
Memory Slots available
4
Max. memory slots
4
Max. RAM
64 GB
Memory voltage
1.20 V

Internal connections

Internal connection options
M.2 (2x), S-ATA III (4x)
Data storage controller
Intel onboard
RAID configuration
0, 1, 10, 5, JBOD
"Number of 5.25"" drive slots"
0 x
Number of 3.5" drive slots (internal)
4 x
"Number of 2.5"" drive slots"
0 x

External connections

USB ports
USB-A
Exact USB ports
USB-A 3.0 (8x)

Network

Network connections
RJ45 (1x)
Max. port speed
1000 Mbit/s
Network features
Wake on LAN

Wireless transmission

Connectivity
Ethernet

Video connections

Video connections
DisplayPort (2x), HDMI (1x)

Audio connections

Audio outputs
3.5mm jack (1x)

Power supply properties

Power
500 W

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
4x S-ATA cables, Driver DVD, Installation material, Thermal grease

Product dimensions

Weight
3500 g
Width
216 mm
Length
332 mm
Height
198 mm
