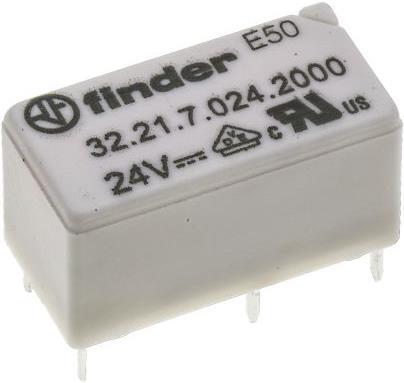

Finder SPDT miniature PCB relay,6A 24Vdc 1500W

Coil voltage: 24V DC

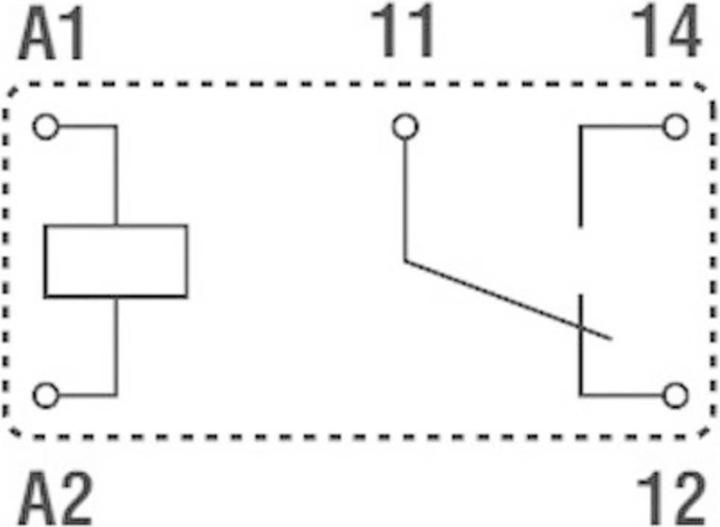

Contact arrangement: 1 pole changeover
Mounting type: PCB mounting
Connection type: Through hole mounting
Coil resistance: 2.88 kΩ
Switching voltage AC max: 250V AC
Application type: Compact
Length: 20mm
Depth: 10mm
Height: 10.7mm

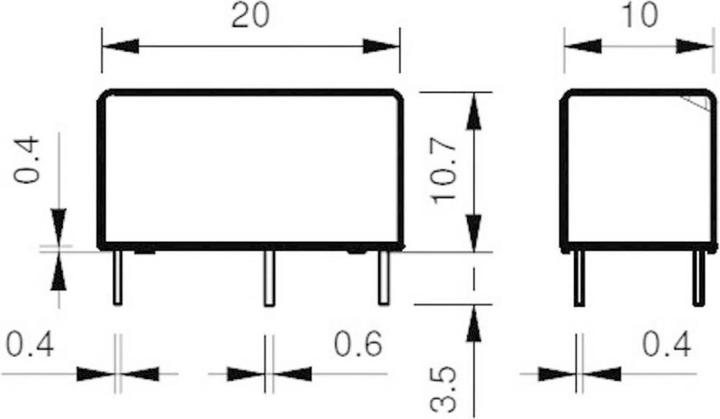

Dimensions: 20 x 10 x 10.7mm
Operating temperature min: -40°C

UL approval for Canada and USA, VDE. Series 32 - 32.21. CO and NO versions waterproof. Insulation coil/contact: 5,000 VAC. Rated voltage: 250 VAC. Contact material: AgCdO. Operating temperature range: -40°C to +85°C. Dimensions: 10.7 x 10.2 x 20.3mm.
