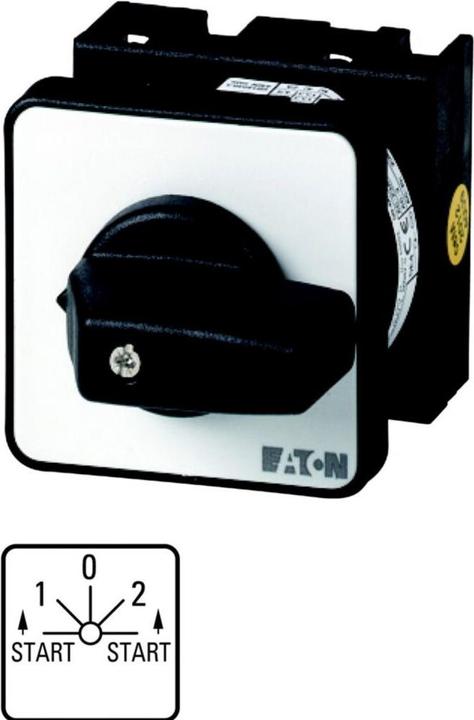

Eaton Push-button switch, T0, 20 A, built-in, 2 11700

Eaton control push-button switch T0-2-8182/E Manufacturer :Eaton Designation :Control push-button switch Type :T0-2-8182/E Design of the switch :On/off switch Number of poles :4 Max. Rated operational voltage Ue at AC :690 V Rated uninterrupted current Iu :20 A Number of switching positions :5 With zero position :yes With retraction in zero position :no Type of device :Built-in device Suitable for floor mounting :no Suitable for front mounting :yes Suitable for distributor mounting :no Suitable for intermediate mounting :no Complete device in enclosure :no Actuating element version :Toggle Front plate size :48x48 mm Protection class (IP), front :IP65 Protection class (NEMA), front :12 Eaton control momentary-action switch T0-2-8182/E: further details momentary-action switch, range: control switches, standards and regulations: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, switch-disconnector according to IEC/EN 60947-3, type identifier: T0, with black knob and front label, contacts: 4, protection class: front IP65, mounting form: panel mounting, switching angle: 45 °, Switching behaviour: momentary/latching, with 0-position, with 2-sided retraction, 2 assembly unit(s), rated uninterrupted current: Iu= 20 A, front label: START>1-0-2, EAN: 4015080117001.
