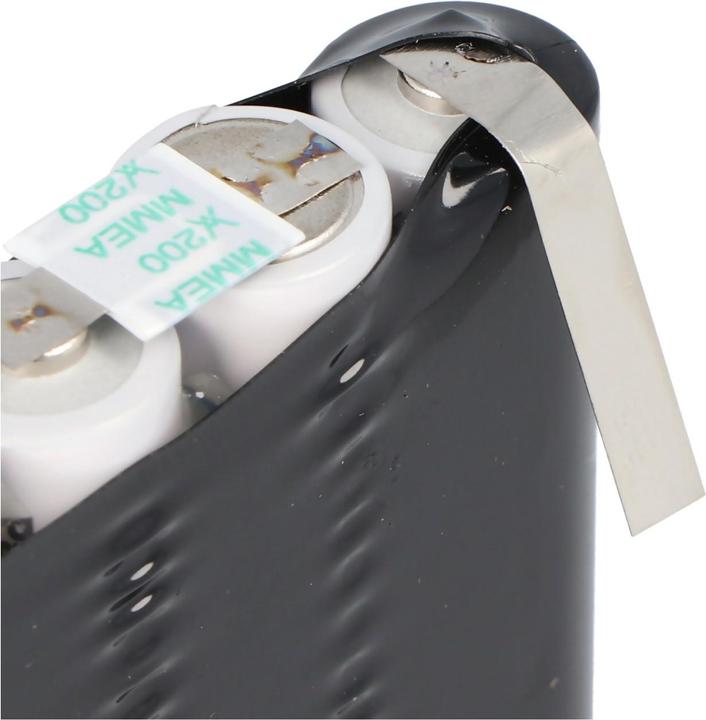

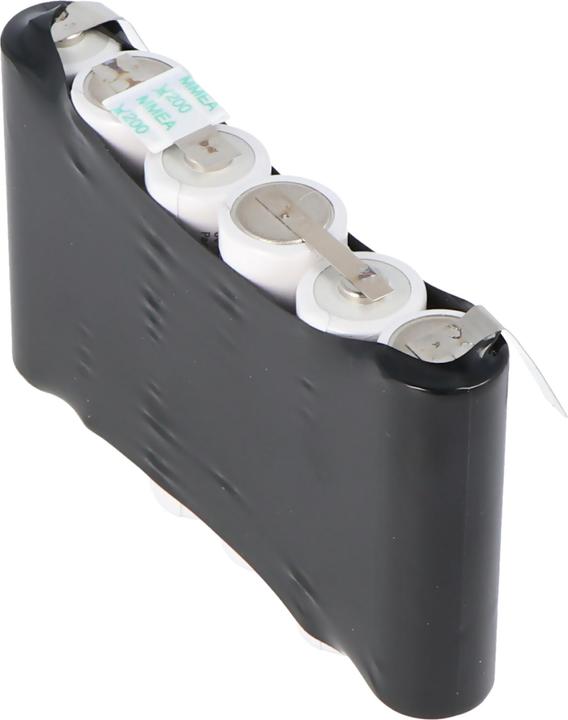

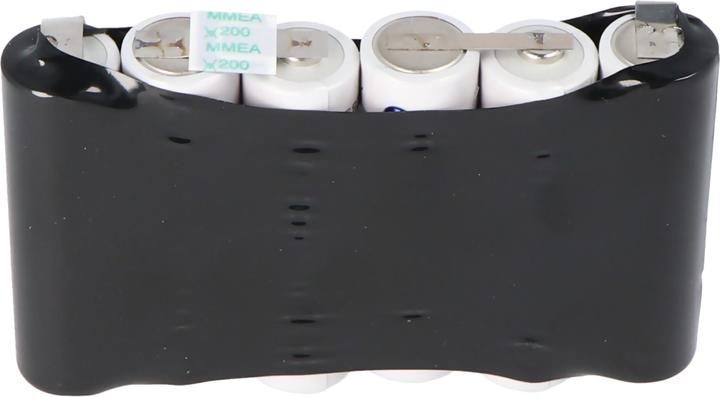

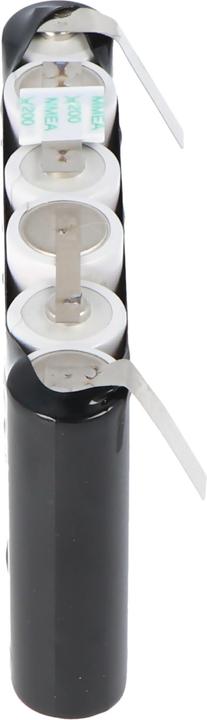

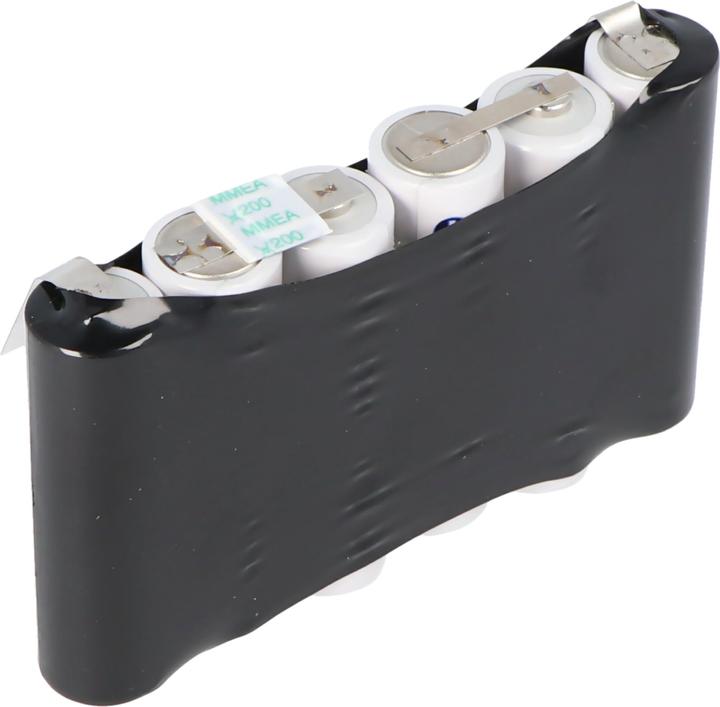

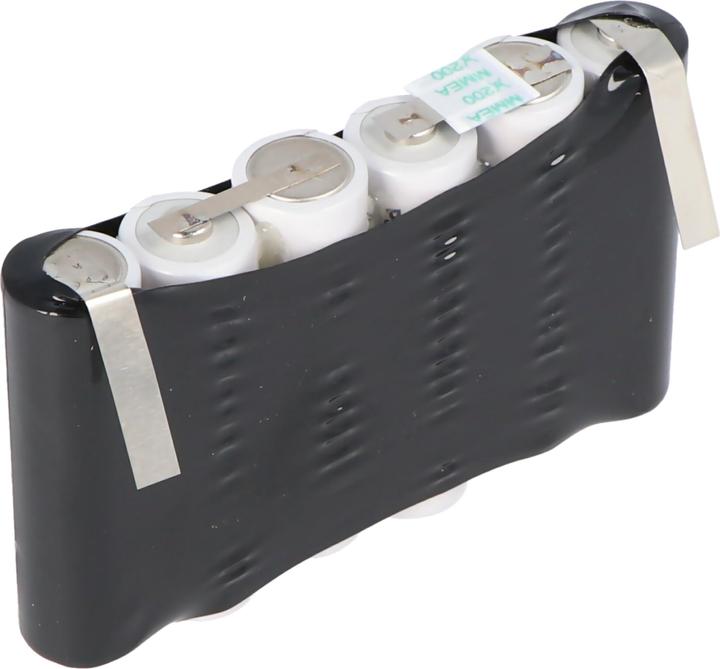

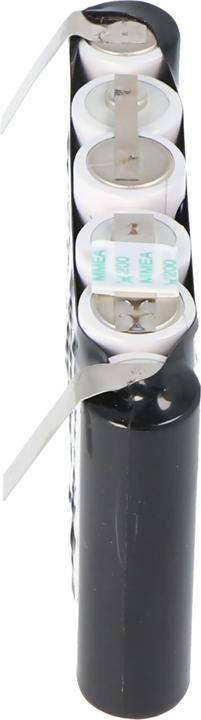

Replacement battery or battery pack for self-conversion, precisely fitting for
Charged today, this replacement battery for the Tektronix Model THM5BAT option A maintains its capacity for up to 10 years, with very low self-discharge. Thanks to up to 2100 charge cycles, this battery is expected to achieve about double the lifespan of the original battery. The NiMH battery pack 7.2 volts with solder tabs is suitable for converting your old measuring device battery to this new NiMH battery pack. The conversion is relatively simple: carefully remove the adhesive films, then simply take out the old 7.2-volt battery pack and replace it with the new battery pack with a robust 2000mAh capacity.
Technical specifications (not an original Tektronix THM5BAT battery):
Voltage 7.2 volts, capacity min. 1900 mAh, typical 2000mAh, dimensions LxWxH approx. 85 x 14.5 x 50 mm, cell size AA Mignon HR-3 UTG, system NiMH battery pack, weight approx. 140 grams, configuration F1x6 (6-cell series), connection system with solder tab (but without solder tab on the positive and negative terminals).
Please note that this is only the battery pack interior; you must remove the housing from the old battery pack!.
Item number | 14070321 |
Manufacturer Type | THM5BAT |
CO₂-Emission | |
Climate contribution |
Length | 85 mm |
Width | 14.50 mm |
Height | 50 mm |
Weight | 140 g |
