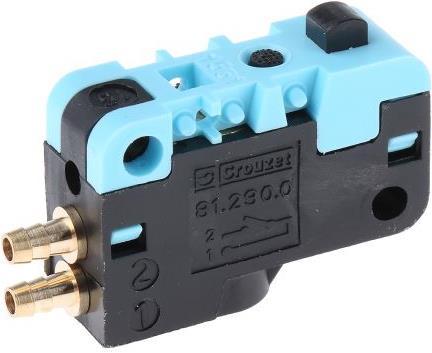

Crouzet 4mm 3/2 NC micro switch valve

Control mechanism = Plunger
Function = 3/2
Manufacturer series = 81
Operating pressure max. = 8 bar
Flow rate max. = 100NL/min
Operating temperature min. = -10°C
Operating temperature max. = +60°C
Number of connections = 3/2

Valves, micro series 3 / 2, 4 mm Ø. A microswitch with low actuating force - only 50 g at 6 bar. Can be used with all microswitch actuators Built-in hose nipple connection for a tube with 4 mm outer diameter and 2.5 mm inner diameter Interchangeable with electric V3 switches Pressure range: 2 to 8 bar Temperature range: -10 to +60 °C.
